Tapes & Sleeves

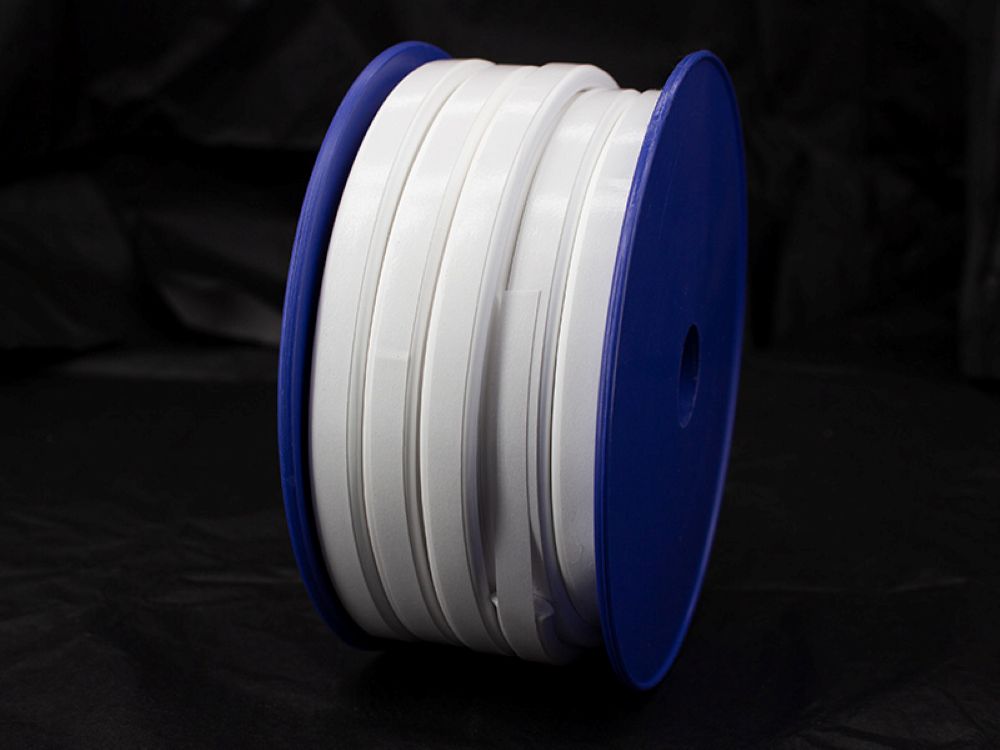

Expanded PTFE Tape
Expanded PTFE tape offers excellent flexibility, compression resilience, creep resistance, high/low-temperature resistance and superior corrosion resistance, non-aging and self-lubrication. Used for sealing flanges of enamel-, glass-, plastic-, rubber- and graphite-lined and stainless/titanium steel towers, heat exchangers and reactors; flange sealing of various pipes and fittings; and large, irregular, poorly finished or uneven surfaces where bolt torque is hard to apply.
Inquire about Expanded PTFE Tape| width mm | thickness mm | length M/roll | width mm | thickness mm | length M/roll |
|---|---|---|---|---|---|
| 1.5 | 3.0 | 30 | 15 | 5.0 | 5 |
| 3 | 2.0 | 30 | 16 | 3.0 | 5 |
| 5 | 2.0 | 20 | | | ||
| 6 | 3.0 | 15 | 17 | 5.0 | 5 |
| 7 | 2.5 | 15 | 18 | 5.0 | 5 |
| 8 | 3.0 | 15 | 20 | 5.0 | 5 |
| 9 | 4.0 | 10 | 25 | 5.0 | 5 |
| 10 | 3.0 | 10 | 30 | 5.0 | 5 |
| 10 | 4.0 | 10 | 40 | 5.0 | 5 |
| 12 | 4.0 | 8 | 50 | 4.0 | 5 |
| 14 | 5.0 | 5 | 100 | 1.0 | 5 |
| Property | Parameter |
|---|---|
| medium | acid,alkali,solvent,most gaseous and chemical media |
| working pressure | 10Mpa |
| density | 0.70-0.80g/cm³ |
| temperature | -240 ~ 260℃ |
| PH value | 0 - 14 |
Available Variants
2 configurations TY-4300A
Expanded PTFE Tape (Self-Adhesive)
Tapes & SleevesExpanded PTFE tape (self-adhesive).
TY-R430
Expanded PTFE Rod
Tapes & SleevesExpanded PTFE rod.
